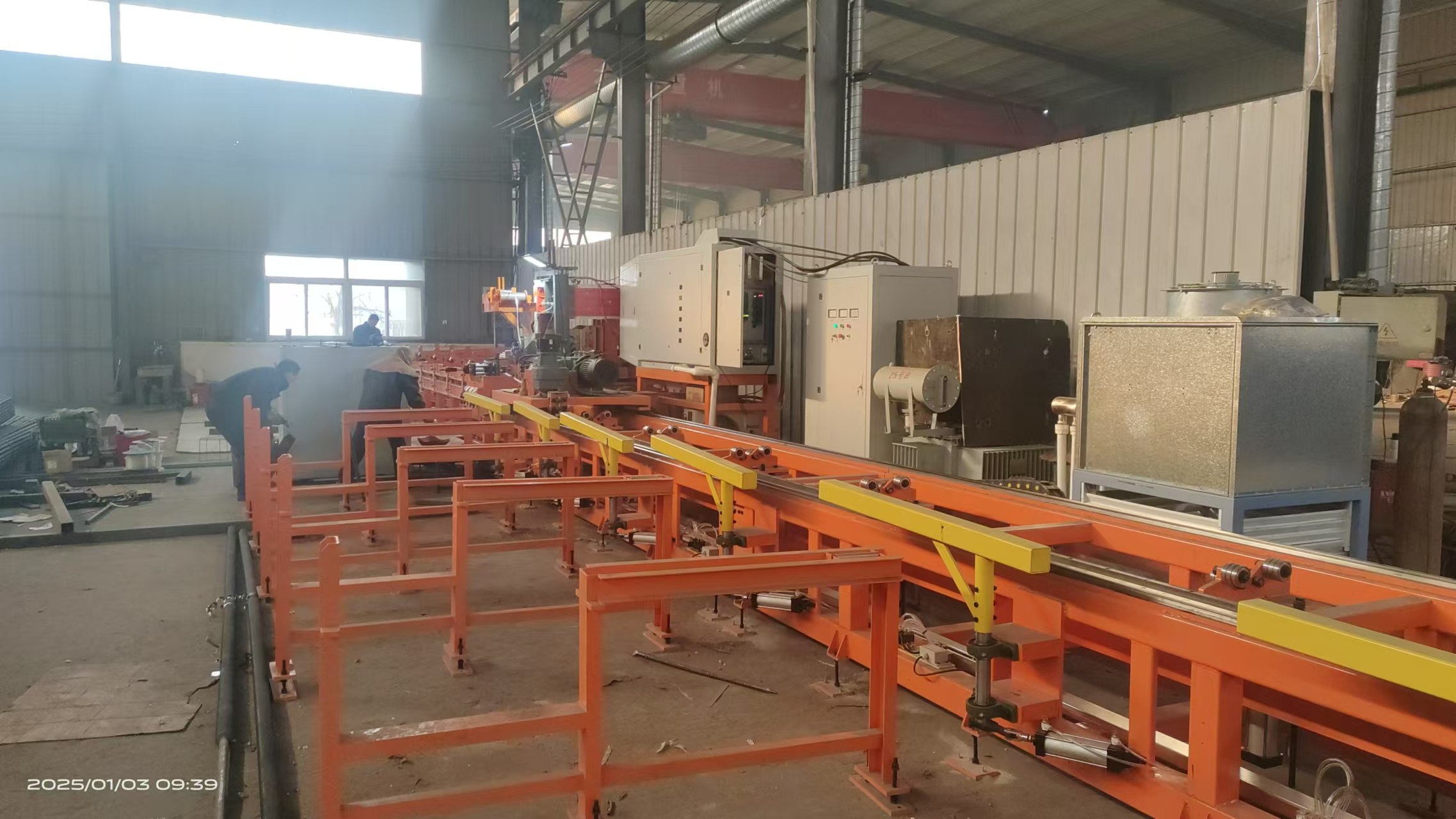

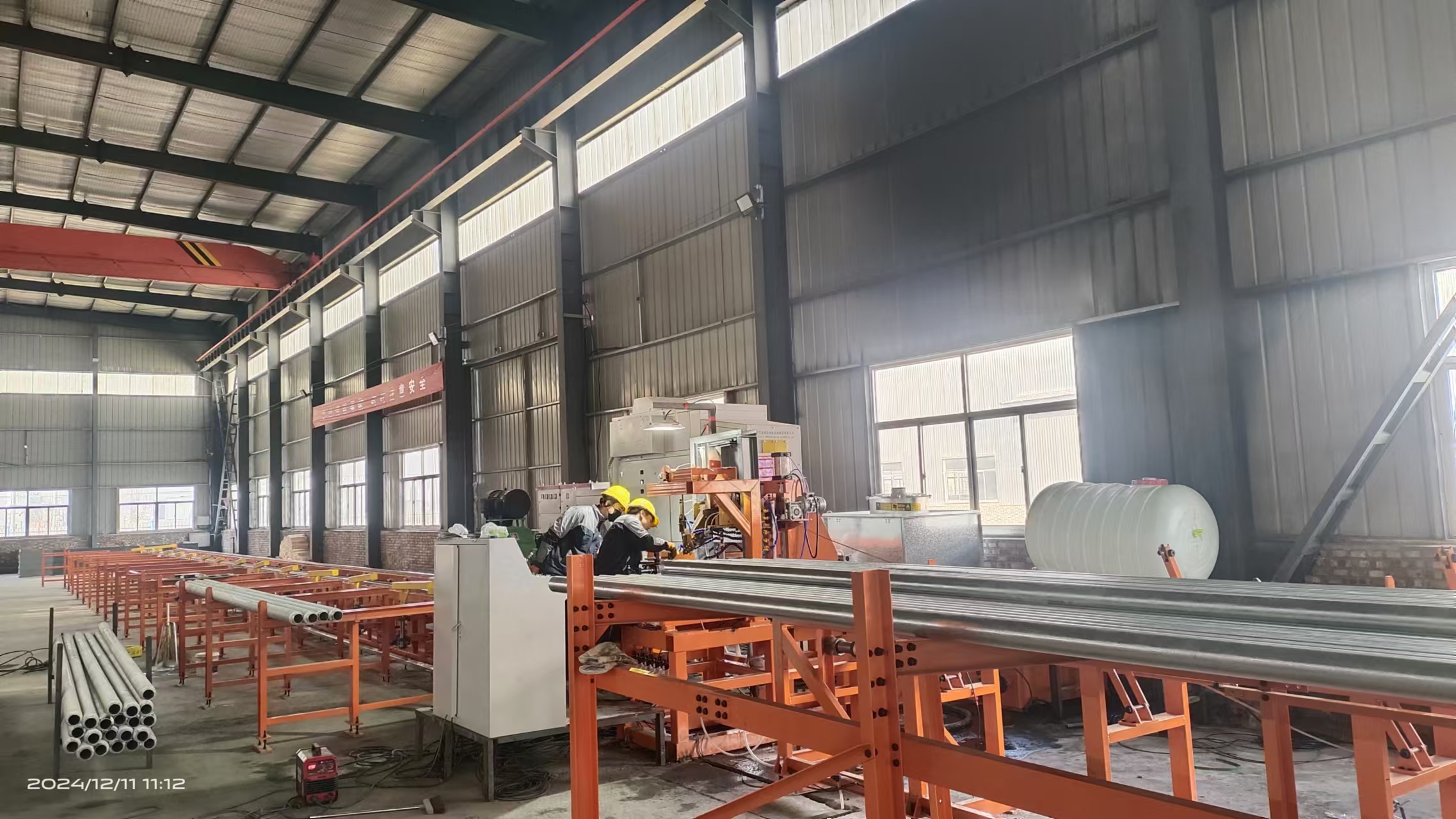

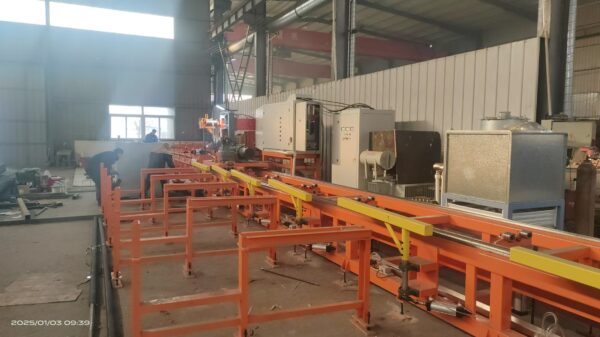

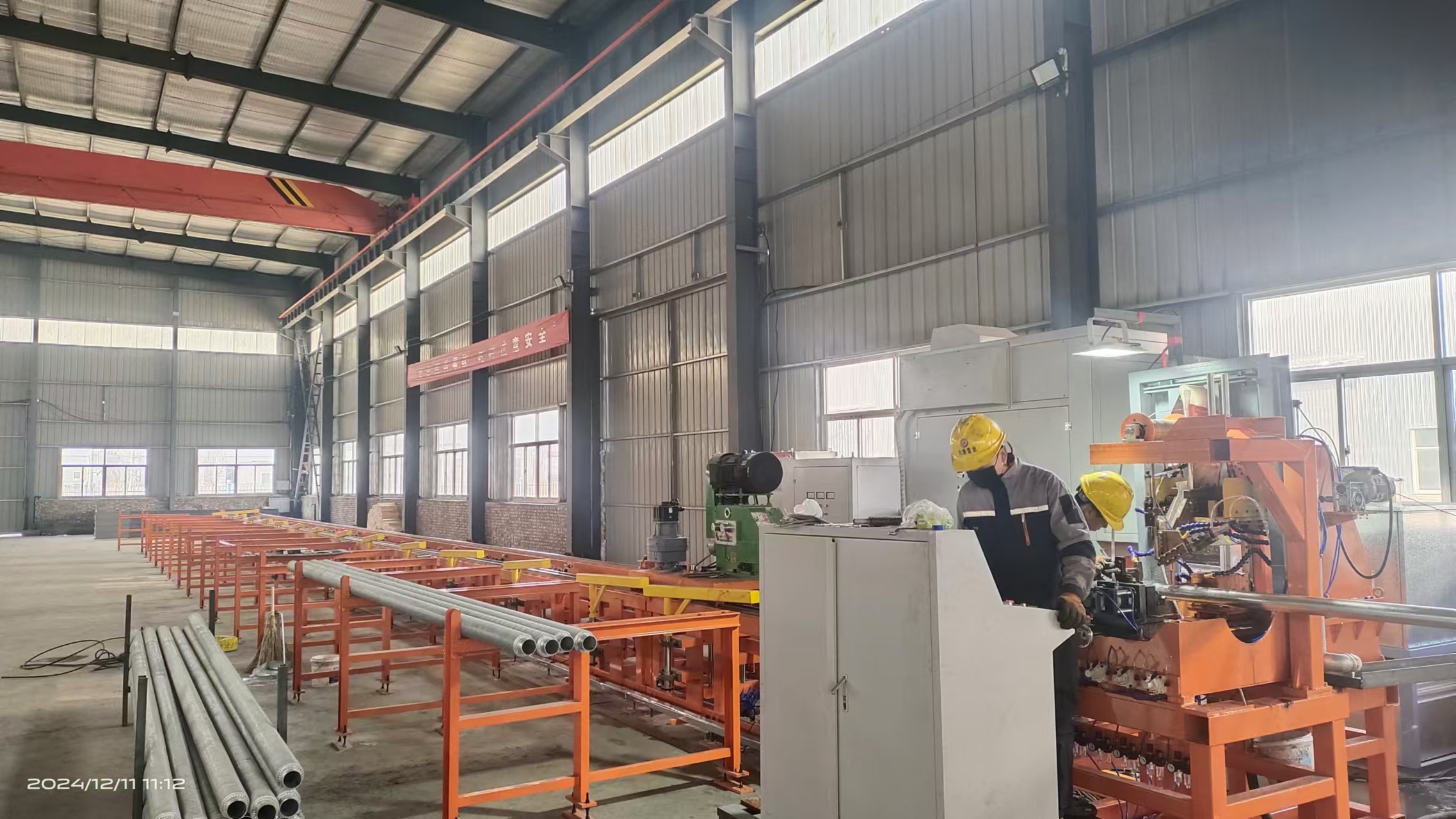

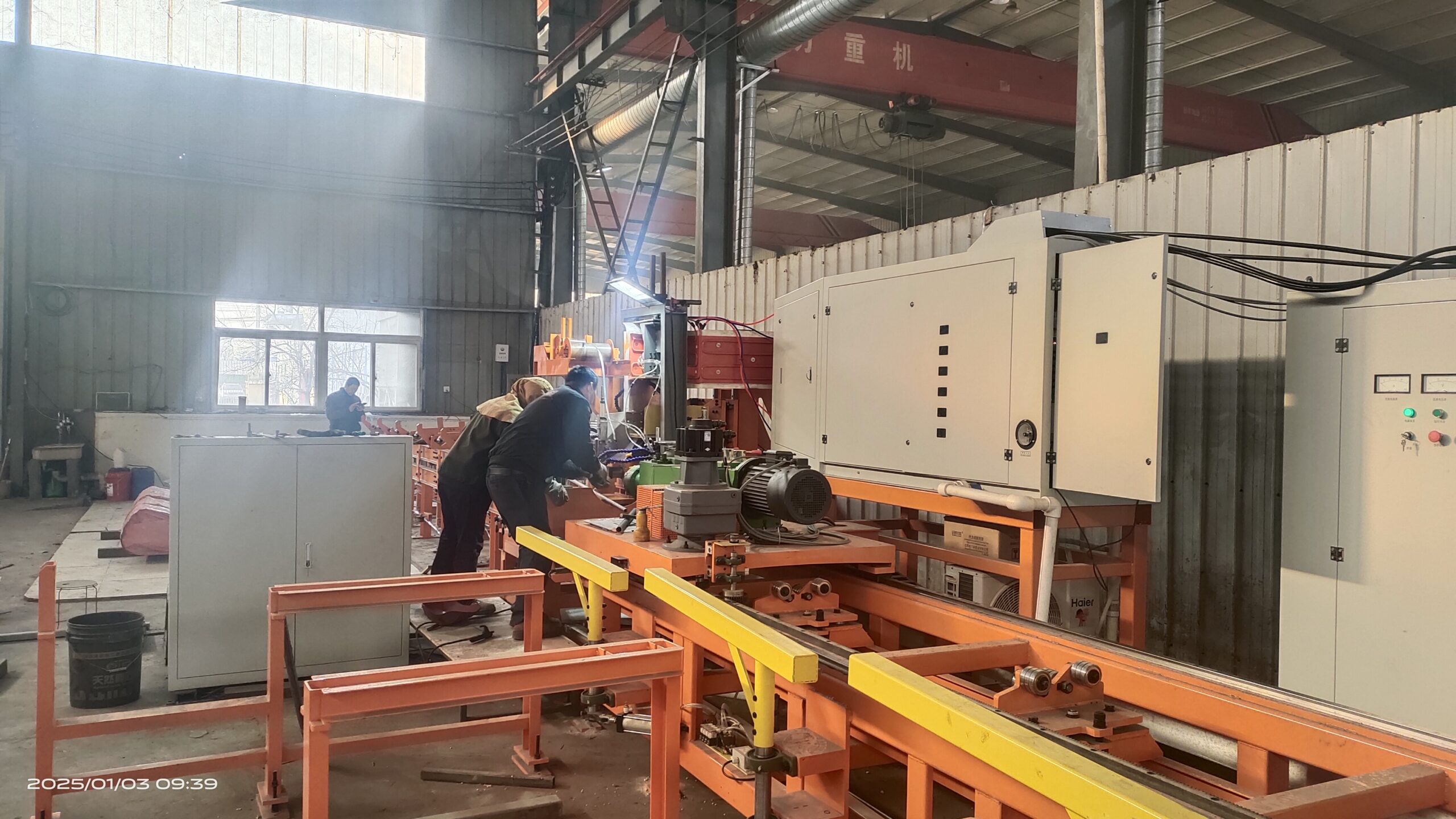

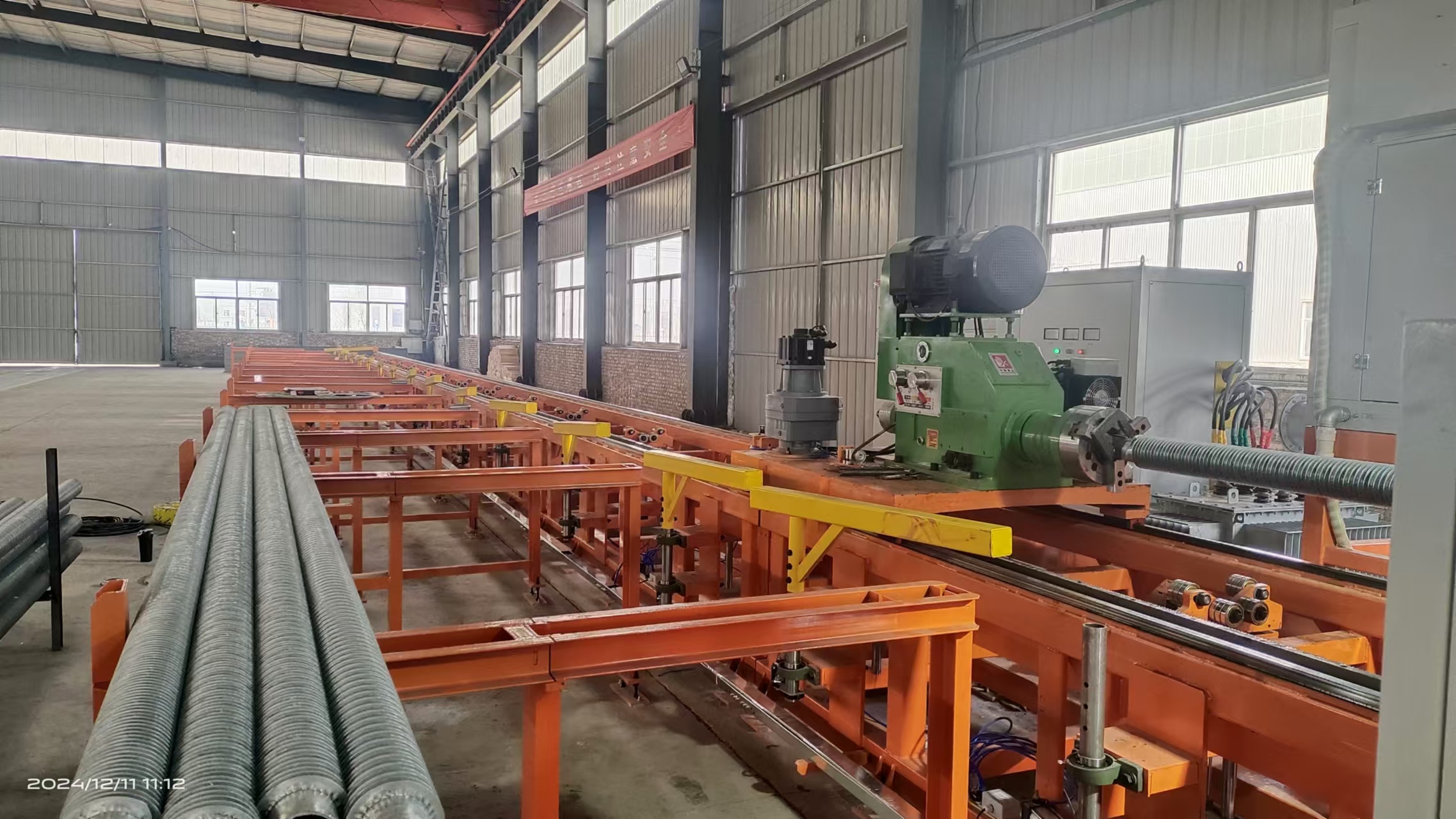

High Frequency Welding Fin Tube Machine

  • Double-inverter-link, PLC control
  • PLC control, HMI operation, full automatic, automatic loading & clamping, automatic feeding, welding and unloading
  • Pure red copper welding torch, smallest distance between torch and conductor, smallest current loss
  • Rail on the machine is made by 40Cr, high quality
  • Pneumatic clamping tubes, pneumatic chuck
  • Equipped with emergency stop and anti-bumping device
Name

What is High Frequency Welding Fin Tube Machine?

Purpose: The high-frequency welded finned tube machine is designed for producing finned tubes through high-frequency welding.
Applications: Primarily used in applications where precise and efficient heat transfer is essential, including power plants, boilers, and industrial heating systems. High-frequency welded finned tubes are known for their reliability and are used in a variety of heat exchange applications.



Suitable finned tube length Max. 10m
Suitable base tube OD Φ20-Φ159mm
Suitable fin material Carbon steel, alloy steel, stainless steel
Suitable fin pitch 3.5-30mm, adjustable
Steel band width 10-30mm
Steel band thickness 0.8-3.0mm
Main spindle speed 0-350rpm
Welding speed 30m/min (band linear feeding speed)
Spiral pitch tolerance ±0.1mm
Non-welded terminal length on tube Less than 20mm
Equipped high frequency power 300kVA
Machine overall dimension About 16 x 3.5 x 1.7m (L x W x H)
Machine weight About 14 tons
