Introduction

Heat exchanger manufacturers have to utilize efficient production equipment due to the ever-growing market demand. This is why it is so important to have very good fin tube manufacturing technology.

High frequency fin tube machines offer a solution for producing fin tubes with an advantage of high production efficiency.

High frequency welding does not use traditional welding methods but rather uses electromagnetic energy to establish a strong bond between the fins and tubes. Hence, manufacturers accomplish a steady production with constant quality.

In addition, the high frequency fin tube machine which is characterized by fast working speed, strong welding performance and wide industrial applications.

Wel come to Bangwin Thermal, as a fin tube professional manufacturer, we are proud to provide first-class quality custom heat exchanger production equipment for global OEM partners.

Visit:

Bangwin Thermal

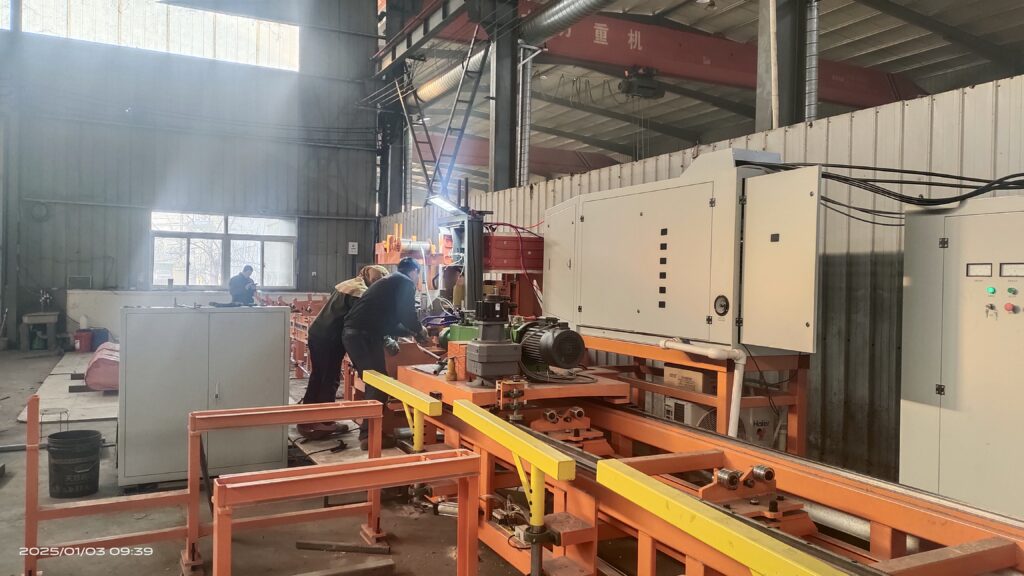

What Is a High Frequency Fin Tube Machine

High Frequency Fin Tube Machine is a dedicated machine for high-frequency welding of fins on tubes.

It does this by producing very high frequency electrical energy.

The energy then generates heat at the interface between fin strip and tube.

As a result of the fin in tube, it achieves solid welding.

A typical high frequency fin tube machine is composed of:

• Tube feeding system
• Fin strip feeding system
• High frequency welding unit
• Tube rotation system
• Fin winding system
• Cooling system
• Automatic control system

The machine can produce:

• Spiral fin tubes
• High frequency welded fin tubes
• Steel fin tubes
• Stainless steel fin tubes
• Industrial heat transfer tubes

In view of this, fin tube pipe machine with high production frequency is widely adopted for large diametral fin tube blank.

High Frequency Welded Fin Tube

How a High Frequency Fin Tube Machine Works

The base tube is fed to the machine first.

Then, second step is that fin strip continuously feeds toward the tube surface.

The high frequency welding equipment will then produce heat.

The temperature melts the contact interface of fin and tube.

Then they use pressure rollers to press the fin onto the tube.

After that, the machine creates a continuously spiral welded molecule fin tube.

The process provides:

• Fast welding speed
• Strong fin attachment
• Stable production quality
• Continuous operation

So, fin tubes can be manufactured at large numbers quite efficiently.

High-Frequency Fin Tube Production Process

Generally, a professional manufacturing process will undergo multiple stages.

4.1 Base Tube Preparation

Manufacturers, then select appropriate tubes based on the requirements of the application.

Common materials include:

• Carbon steel
• Stainless steel
• Alloy steel
• Copper

The tube surface has to be cleaned prior to welding.

Therefore, the welding quality improves.

4.2 Fin Strip Feeding

Insert the fin strip is automatic presentation.

The feeding system controls:

• Strip tension
• Feeding speed
• Fin position

This is so that during production, the fin stays aligned.

4.3 High Frequency Welding Process

The welder generates a high frequency current.

The current generates heat by electromagnetic induction.

The bonding of the fin to tube then occurs at that hot area.

As the process heats the welding zone rapidly, it results in fast production speeds.

4.4 Spiral Fin Forming

The machine indefatigably wraps the fin strip around the tube.

Operators can adjust:

• Fin pitch
• Fin height
• Tube rotation speed
• Welding power

Thus, various fin tube specifications can be produced by the manufacturers.

4.5 Quality Inspection

Manufacturers inspect finished products.

Inspection items include:

• Weld strength
• Fin spacing
• Tube straightness
• Surface condition

Consequently, products fulfill the industrial standards.

Main Advantages of High Frequency Fin Tube Machine

High frequency fin tube machine has many production benefits.

5.1 High Production Speed

The continuous operation is supported by the high frequency welding.

Hence, it is relatively faster for the manufacturers to manufacture fin tubes in bulk.

Additionally, its high production speed enhances the efficiency of factories.

5.2 Strong Welding Performance

You have a solid connection with high frequency welding.

Thus fins do not separate during long time use.

Also, ±vibration and thermal expansion overcomes well with welded fin tubes.

5.3 High Production Stability

These works use automatic control systems for the machine itself.

Therefore, welding parameters remain consistent.

As a result, the product has more stable quality.

5.4 Wide Application Range

Different kinds of materials are processed by high frequency fin tube machines.

Common materials include:

• Carbon steel
• Stainless steel
• Alloy steel
• Copper alloys

This is, therefore manufacturers serving multiple industries.

5.5 Cost Effective Manufacturing

In comparison with more advanced welding technologies, high frequency welding has competitive production costs.

This makes it acceptable for high-volume manufacturing.

5.6 Continuous Automated Production

Modern machines include automatic systems.

Features include:

• Automatic feeding
• Digital control
• Welding monitoring
• Production adjustment

Therefore, manufacturers reduce labor requirements.

Basics of High Frequency Fin Tube Machine

There are a few important systems that we have in a complete machine.

6.1 High Frequency Welding Unit

Electrical energy is supplied by the welding unit.

It controls:

• Welding power
• Frequency parameters
• Welding stability

So, it influence the quality of its products directly.

6.2 Tube Rotation System

It is the system of rotation controlling tube movement.

Hence, the fin winding precepts is nonetheless accurate.

6.3 Fin Feeding System

A continuous supply of fin strips is released by the feeding system.

It ensures:

• Stable feeding
• Correct alignment
• Uniform fin spacing

6.4 Control System

It is the PLC which controls the working of machines.

Operators can adjust:

• Production speed
• Welding parameters
• Product specifications

6.5 Cooling System

Through the cooling system, production temperature is controlled.

Therefore, equipment maintains stable operation.

Applications of High Frequency Fin Tube Machine

Fin tube machines that support many major industries often use a high frequency practice process and automation.

7.1 Heat Exchanger Manufacturing

Heat exchanger manufacturers use high frequency fin tube machines to produce:

• Air cooled heat exchanger tubes
• Industrial fin tubes
• Heating and cooling components

Heat Exchanger Manufacturing

7.2 Power Generation Industry

Thermal systems in power plants are wanted for efficient operation.

Hence, its applicable for high frequency welded fin tubes:

• Boiler systems
• Economizers
• Cooling equipment

7.3 Petrochemical Industry

All petrochemical plants need reliable heat transfer equipment.

Applications include:

• Air coolers
• Condensers
• Process heat exchangers

7.4 HVAC Industry

HVAC manufacturers use fin tubes for:

• Heating systems
• Cooling systems
• Ventilation equipment

Thus, high frequency welding will assist HVAC production in an effective way.

7.5 Industrial Cooling Systems

Factories require continuous heat removal.

Thus, high frequency fin tubes support are:

• Compressor cooling
• Oil cooling
• Process cooling

High Frequency Fin Tube Machine vs Laser Fin Tube Machine

Thus high frequency fin tube machine is to large production, and the laser machines are concentrated by high precision use.

Laser Fin Tube Manufacturing Machine

How to Select a Good High Frequency Fin Tube Machine

Choosing the right equipment is an assessment.

Production Capacity

Consider required output volume.

The big manufacturers are looking for high speed production systems.

Tube Specifications

Check:

• Tube diameter
• Fin height
• Fin thickness
• Fin pitch

Material Compatibility

Various materials, welding processes as well as robot welders require different settings during the operation.

As a result, check to see if your machine can handle it before purchasing.

Automation Requirements

Automatic systems improve production efficiency.

So select the equipment based on factory needs.

Supplier Experience

A reliable supplier should provide:

• Machine installation
• Technical training
• Maintenance service
• Spare parts support

Bangwin Thermal, we have the ability to tailor high frequency fin tube machines based on consumer generation requirements.

Visit:

Bangwin Thermal Official Website

Why Choose Bangwin Thermal

Bangwin Thermal: Manufacturer of fin tube equipment and a supplier of heat exchangers in the industrial field

Our advantages include:

• Professional thermal engineering experience
• Advanced manufacturing technology
• Customized machine design
• Strict quality control
• Global export capability
• Complete technical support

In addition, we set up capillary fin tube production line for customers.

For related industrial products, visit:

Bangwin Gas Cylinder

FAQ

1. What is a High Frequency Fin Tube Machine?

It is equipment that uses high frequency welding technology to attach fins onto tubes.

2. What are the advantages of high frequency welding?

It provides high production speed, strong welding performance, and stable quality.

3. What materials can high frequency fin tube machines process?

They can process carbon steel, stainless steel, alloy steel, and copper tubes.

4. What industries use high frequency fin tubes?

They are widely used in heat exchangers, power plants, petrochemical systems, HVAC, and industrial cooling.

5. Is high frequency welding better than laser welding?

High frequency welding offers faster production, while laser welding provides higher precision.

6. Can Bangwin Thermal customize high frequency fin tube machines?

Yes. Bangwin Thermal provides customized fin tube production equipment based on customer requirements.

Conclusion

High Frequency Fin Tube Machine–Modern Manufacturing Solution for a Better Fin-Tube

With the features of high production speed, good welding performance, constant quality and strong industrial adaptability.

As a result, this remains as an important option for manufacturers making numerous components in the heat exchanger line.
